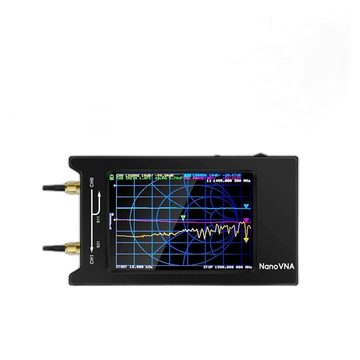

Vector Network Analyzer, 4-inch LCD Touchscreen, Frequency Range 10KHz-15GHz
Regular price
€156,44
Sale price
€156,44
Regular price
Old price:
€244,68
Save 36%
Unit price
Tax included.
-
Receive between Jul 07 - Jul 11
-
90 day free returns
-
24 hour response time
Vector Network Analyzer, 4-inch LCD Touchscreen, Frequency Range 10KHz-15GHz
Regular price
€156,44
Sale price
€156,44
Regular price
Old price:
€244,68
Unit price
Additional information
Product Description
- high-resolution display: experience clear results on the 4-inch lcd touchscreen with dc-dimming suitable for both indoor and outdoor use. the upgraded abs housing minimizes interference to enhance measurement accuracy.
- enhanced frequency range: benefit from utilizing the odd harmonic extension of si5351 to support frequencies up to5ghz. enjoy dynamic performance exceeding 70db in the 50k-300mhz range and over 40db in the 900m-5ghz range.
- comprehensive measurements: perform tx/rx measurements and analyze full s11 and s21 parameters using this portable nanovna equipped with a0-inch lcd display. easily export touchstone files for radio design simulation software.
- user-friendly features: take advantage of the resistive touchscreen with the included stylus for precise control. the optimized bridge design improves reflection measurements, while the 1950mah battery ensures over 8 hours of continuous use.
- enhanced performance: reap the benefits of reliable response with enhanced power management circuitry that reduces interference and safeguards the battery. the compact design, uart interface for diy expansion, and exquisite packaging make the nanovna-h4 a versatile rf tool.
Product Specification
- type analyzer: vector network analyzer
- measurement frequency range: 10 khz 1.5 ghz
- display size: 4-inch lcd touchscreen
- battery capacity: 1950 mah
- measurement parameters: s11, s21
- frequency extension: up to 1.5 ghz
- harmonic extension: odd harmonics
- output level: 0 dbm
- swr: <1.1
- display resolution: 320 x 480
- usb interface: usb type-c
- power source: usb 5v, 1950 mah battery
- number of scan points: 101
- frequency tolerance: <2.5 ppm
- frequency stability: <0.5 ppm
- certification: not specified
- color: not specified
- dimensions: 75 mm x 133 mm x 18 mm
- material: abs housing
- accessories: usb type-c data cable, rf cables, calibration kits, connectors, type-c to type-c cable
