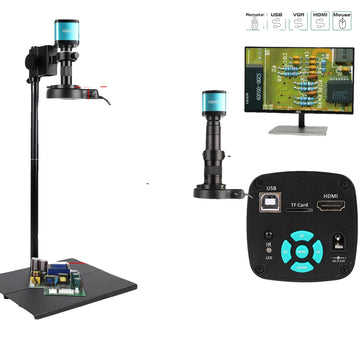

Industrial Microscope Camera, HDMI/USB/VGA Connectivity, 1-150X/180X Zoom Range
Regular price
€259,94
Sale price
€259,94
Regular price
Old price:
€377,83
Save 31%
Unit price
Tax included.
-
Receive between Jul 07 - Jul 11
-
90 day free returns
-
24 hour response time
Industrial Microscope Camera, HDMI/USB/VGA Connectivity, 1-150X/180X Zoom Range
Additional information
Product Description
What makes this so special?
- Zoom Range of 1-150X and 180X: With the built-in C lens, this industrial microscope camera offers a zoom range of 1-150X and 180X, allowing you to capture images from different angles and magnify objects up to 150X or 180X.
- Multiple Outputs: Connect this camera to HDMI, USB, and VGA for high-definition image display, and easily save photos and videos to U disk or transfer data to your computer.
- Comprehensive Measurement Functions: Equipped with 12 kinds of measurement functions such as line drawing, straight line, and circle, this microscope camera also supports line calibration, circle calibration, cross line, and more.
Specifications:
- Sensor: 1/2.8 inch Sony IMX335 CMOS sensor
- Pixel size: 48MP
- USB interface: USB2.0 X2 (plug U disk, connect mouse)
- HDMI output: 1920*1080 60 frames
- Lens interface: C interface
- Exposure: One-button exposure/automatic exposure
- White balance: One-key white balance/auto white balance
- Storage: Support U disk storage, mouse operation
- Input voltage: DC 5V-12V
- Cross line: Support center cross line, a total of 8 (color, position adjustable)
- Line drawing: 12 kinds of measurement functions such as line drawing, straight line and circle are supported.
- Boot screen: Support custom boot screen
- Calibration: Support line calibration, circle calibration
- Mirroring: Support horizontal/upside down
- Menu language: English/Chinese/Traditional
- Net weight: 150g
- Gross weight: 350 grams
- Product size: 70*70*38mm
- Packing size: 145*130*70mm
- Support photo, video, JPG format
- Support manual one-key exposure
- Support manual one-key white balance, red, green and blue adjustable
- Support cross line function
- Support Chinese and English menu languages (default English)
- Support shutdown setting parameter saving
- Support user-defined startup screen
- Using CNC precision milling technology to process aluminum alloy shell
- Support 12 kinds of measurement functions such as line drawing, straight line and circle
- Support measurement data calibration
- Support to import PNG files
- Come with software, drive free
- Lens Type: 1X-180X Zoom C-mount Lens
- Zoom Ratios: 6.5:1
- Working Distance: 50~155mm
- Magnification: 8X~180X
- Size: 175mm*50mm
- Weight: 0.57kg
- Lens Type: 0.5X C-mount Adapter
- Zoom Ratios: 6.5:1
- Working Distance: 50~155mm
- Magnification: 8X~180X
- Size: 175mm*50mm
- Weight: 0.57kg
- Lens Type: 1X-150X Zoom C-mount Lens
- Zoom Ratios: 1 : 15
- Working Distance: 50mm-1000mm
- Magnification Power: 0.15- 2X (about 1 - 150X on the display)
- View Field of Max Multiple: 4.2mm*2.4mm
- View Field of Min Multiple: 130mm*70mm
- Size: 30mm(diameter) * 99mm(length)
- Weight: 195g
- Lens Type: 1-130X Type C Mounting Lens
- Zoom Ratios: 1:17
- Working Distance: 40mm-400mm
- Magnification Power: 0.1 - 1.3X (about 1 - 130X on the display)
- View Field of Max Multiple: 8mm*4.5mm
- View Field of Min Multiple: 40mm*33mm
- Size: 115mm(L) * 40mm(DIA)
- Weight: 210g
- Light (Black/White): Input Voltage: AC100-240V 50/60Hz, Output Voltage: DC 12V, Output Power: 5W, Protection Grade: IP40, Working Distance: 40-160mm, Maximum Illumination: 50000-60000Lux, Light Color Temperature: 6500-7000K, Brightness Adjustment: 1-100%, Shell Material: Engineering Plastic (Environmentally Frily Material), Installation Size: Maximum 62mm, Minimum 33mm, Number of LEDs: 56 Particles of Bright LEDs
- Shipment: Ship within 1-2 working days, may change shipping method due to customs, remote address and shipping speed
- Warranty & Return: Free replacement for orders within 30 days from delivery date, pay some parts of order value to get replaced for orders from 1 to 12 months, small discounts for order older than 12 months
- Service Time: Monday to Friday 9:00 AM to 6:30 PM Beijing Time
- Feedback: Reply within 30 minutes during working time, solve
