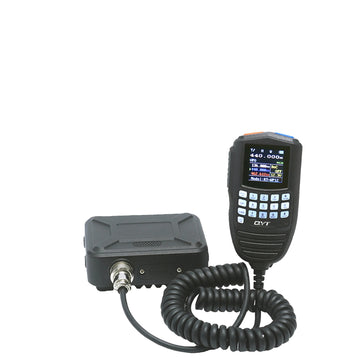

Dual Band Mobile Radio, 25W Power Output, LCD Display

• Dual Band Operation: This mobile radio supports VHF (136-174MHz) and UHF (400-480MHz) frequencies, offering a wide range of communication options for amateur users.
• High Power Output: With a maximum output power of 25W, this mini two-way radio ensures clear and strong signal transmission for reliable communication.
• LCD Display with Microphone: The built-in LCD display provides easy navigation and monitoring of channel information, while the included microphone allows for convenient hands-free communication.
• Multiple Channel Options: Featuring 200 channels with channel spacing options of 25KHz (wideband), 20KHz (midband), and5KHz (narrowband), users can easily find and select the desired communication channel.
• Versatile Connectivity: This transceiver supports various squelch methods including Carrier, CTCSS, DCS, 5Tone, 2Tone, and DTMF, ensuring secure and interference-free communication in diverse environments.

Specifications:

• Type: Dual Band Mobile Radio
• Output Power: 25W
• Frequency Range: VHF: 136~174MHz, UHF: 400-480MHz
• Number of Channels: 200 channels
• Channel Spacing: 25KHz (wideband), 20K (midband), 12.5 (narrowband)
• Phase Lock Step: 5KHz, 6.25KHz, 10KHZ, 12.5KHz, 15KHz, 25KHz
• Working Voltage: 13.8VDC±15%
• Squelch Method: Carrier/CTCSS/DCS/5Tone/2Tone/DTMF
• Frequency Stability: ±2.5ppm
• Working Temperature: -20~+60℃
• Size: 98(W)×35(H)×118(D)mm
• Weight: 408g
• Sensitivity: ≤0.25uV50.35V
• Adjacent Channel Selectivity: ≥70dB (broadband), ≥60dB (narrowband)
• Intermodulation: ≥65dB (broadband), 60dB (narrowband)
• Audio Response: +1-3dB (0.3-3KHz) (broadband), +1-3dB (0.3-2.55KHz) (narrowband)
• S/N Ratio: ≥45dB (broadband), ≥40dB (narrowband)
• Audio Distortion: ≤5%
